ordinary carbon plate

Standard:GB3274-88,GB711,JIS G3101,JIS G3106,JIS G4051,DIN17100,ASTM,BS4360,EN10083-2,EN10025
Thickness: 8mm-400mm
Width: 1500mm-4020mm
Length:3000mm-18000mm

Send Inquiry
Ordinary carbon plates is a kind of common structure steel plate, the iron content is more than 99%, and carbon content is less than 0.21%. The main composition of general carbon plate is C, Si, Mn, S and N, H, O etc. Usually, the ferroalloy carbon content less than 4.5% is called steel; while the ferroalloy carbon content more than 4.5% is called iron. Actually, steelmaking is a process of removing excess carbon. For example, Q235A/B/C/D Q295A/B/C/D are general carbon steel plate.
Carbon structural steel hot rolling medium plate (GB/T73274-1988, GB/T700-1988)

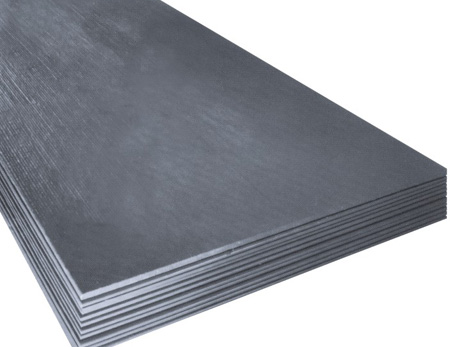

Ordinary Carbon Plate

ordinary carbon plate


Mechanical Processing Property
Grades Yield Strength(Mpa) Tensile strength(Mpa) Elongation ratio after fracture (%) Impact test Bending test
b=2a  180℃
Thickness Steel thickness Temperature temperature,impact,AKV
(lengthways),J
≤16 ﹥16-40 ﹥40-60 ≤16 ﹥16-40 ﹥40-60
No less than No less than No less than
Q235-A 235 225 215 375~500 26 25 24 - - Lengthways d=a
Q235-B 20 27 Crosswise d=1.5a
Chemical Composition
Grade C Si Mn P S Cr Ni Cu
Q235-A 0.14~0.22 0.12~0.30 0.30~0.65 ≤0.045 ≤0.050 ≤0.30 ≤0.30 ≤0.30
Q235-B 0.12~0.20 0.12~0.30 0.30~0.70 ≤0.045 ≤0.045 ≤0.30 ≤0.30 ≤0.30

Remarks:
Carbon structural steel is carbon steel of carbon content less than 0.8%, which content of S, Pi and non-metallic is less than carbon structural steel, and mechanical performance is good.
According to carbon content, carbon structural steel can be divided into low carbon steel (C≤0.25%), medium carbon steel (C is 0.25-0.6%) and high carbon steel (C>0.6%).
According to Mn content, carbon structural steel includes normal Mn content (0.25%-0.8%) and higher Mn content (0.70%-1.20%), and the latter has good mechanical properties and process ability.

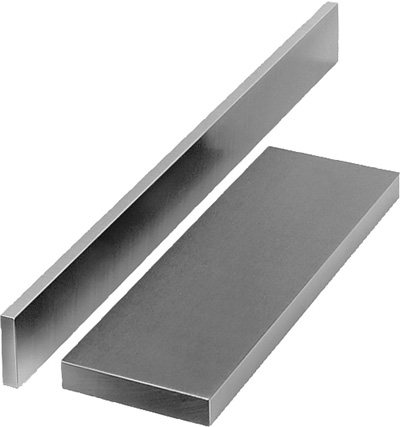

carbon steel plate

Carbon Structural Steel Plate
Q235-Q275(A,B,C) GB3274-88 Specification and delivery term Main Applications
10-55
20Mn-50Mn
GB711and
1、Specification ranges:
Thickness: 8mm-400mm
Width: 1500mm-4020mm
Length:3000mm-18000mm,
Max weight: 25T;
2、Delivery state:
According to customers’ requirements, steel plate can be hot rolling, controlled rolling, normalizing, annealing, tempering, NT and hardening and tempering;

3、Flaw detection and thickness performance:
Producing additional flaw detection requirements and tear resistant(thickness direction performance), also can supply Z performance steel plate based on ASTM、A770 standards.
It is used to make various kinds of steel rivet, bolt and welding structure.
SS400 JIS G 3101
SM400(A,B) JIS G 3106
S10C-S55C JIS G 4051
St37-2, St37-3 DIN17100
A36, A283(A, B, C, D)
1010-1050
ASTM
40(A, B, C, D, EE) BS4360
S235(JR, JO, J2G3, J2G4) EN10025
1C22, 1C25, 1C30, 1C35
1C40, 1C45, 1C50, 1C55
EN10083-2
Fe360(A, B, C, D) ISO630
